Superior Radiant Products CE015 Dsi Module 2461D928-227

Name: Superior Radiant Products CE015 Dsi Module 2461D928-227
Brand: Superior Radiant Product
SKU: CE015
Price: 252.91 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Superior Radiant Products CE015 Dsi Module 2461D928-227

SKU: CE015

Tariff HS Code: 8534000095

Brand:

Rating:

Quantity	Price	Stock
19 Usually Ships 1 - 2 Weeks	$252.91 /ea	19

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

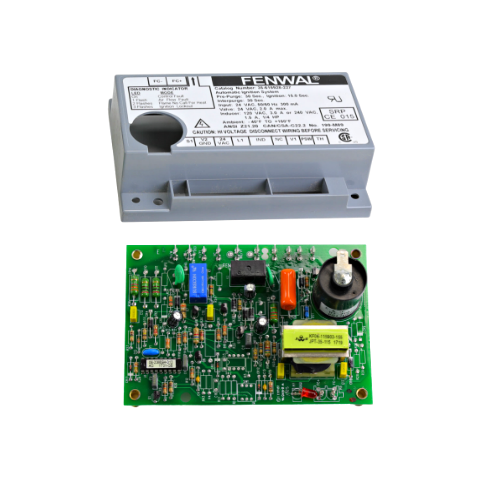

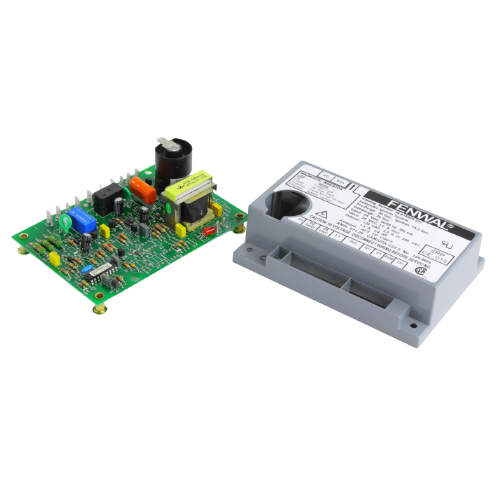

The Superior Radiant CE015 is a CSA-approved 24Vac direct spark ignition microprocessor-based ignition module. This is used for automatic ignition systems to control, analyze, and monitor the gas burner operation. Operation pre-purge and interpurge time is 30 seconds while 15 seconds for ignition time.

The CE015 replaces Fenwal 2461D928-227 and 35-615928-227 DSI Module. Suitable as a replacement DSI module for Fenwal UA//LA/UAC/UAX/UXR/TXR Series Gas Fired Heaters. It can also be used on heating applications such as boilers, gas furnaces, and water heaters.

The CE015 is the right replacement module for your heater if it falls under the following serial numbers:

UA/LA/UAC with serial numbers > 96000
UXR/TXR with serial numbers < 132441
UAX with serial numbers < 96000

Pre-Purge	30 seconds
Ignition	15 seconds
Interpurge	30 seconds
Input	24VAC, 60/60Hz, 300mA
Valve	24Vac, 2.0amp max
Inducer	120Vac,3.0amp or 240Vac,1.5amp, 1/4hp
Ambient Temperature	-40F to +160F
Approval	CSA

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Is this a direct replacement for the cave controls CCA-14035B ?

Asked on February 06, 2023 by Travis from Battleford Sask Canada

1 Answers

Have an answer? Click Here

Unfortunately, we do not have any information Cave Controls model CCA-14035B. As such, we are not able to confirm if this is a suitable replacement. We encourage you to seek the guidance of a local licensed professional technician that can review your application and ensure that the replacement item will work in your application.

Replied on February 09, 2023 by Ori from Industrial Stores
