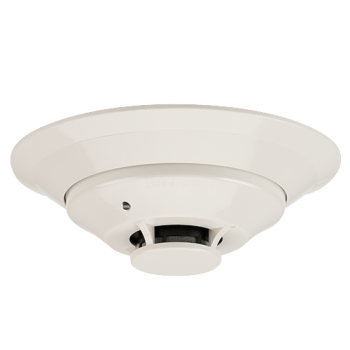

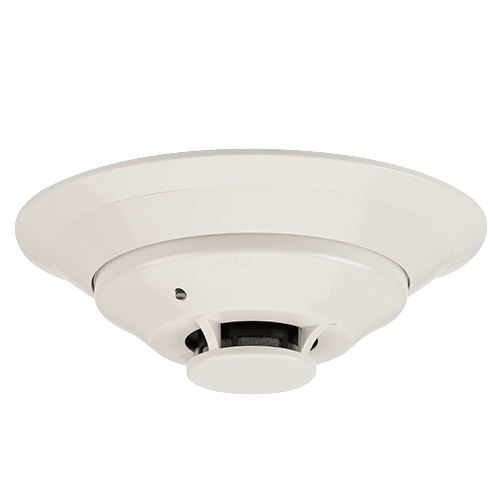

2151T Duct Smoke Detector for Special Applications

The System Sensor 2151T low-profile photoelectric smoke detector with a B114LP or B114LPBT base is listed to Underwriters Laboratories 268A specifically for use in noflow/low-flow air-handling systems.

The 2151T can be used as a pendant mount detector in no-flow/ low-flow air-handling systems (0-3,000 FPM). The pendant /plenum mounted 2151T is to be installed into a B114LP or B114LPBT base. This is the perfect combination for installation in ducts where the air velocity is below 500fpm or for duct sizes as small as 8” in diameter.

Pendant mounted in a standard electrical box within the duct, the twist-in/twist-out head allows easy removal from the base for quick cleaning and maintenance. The 2151 heads can be combined with the System Sensor B114LP 120VAC base or the B114LPBT 24VAC/DC base.

Features for 2151/B114LP/B114LPBT
• Low-profile smoke detector design
• Low standby current
• Two LEDs blink in standby
• Detector head plugs easily into base
• Field sensitivity metering of detector to meet the requirements of NFPA 72 with the use of SENS-RDR
• Designed for mounting on a standard electrical box
• Removable cover and insect screen for field cleaning
• Accepts 24 or 120V supply voltage
