Tekmar 003 Relay With 24V Coil

Tekmar 003 Relay With 24V Coil
Images for general purposes only. Actual may be different than depicted.

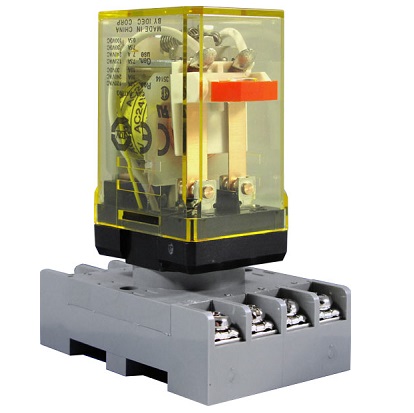

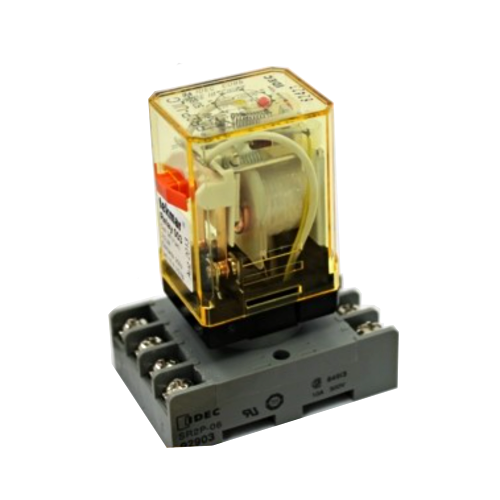

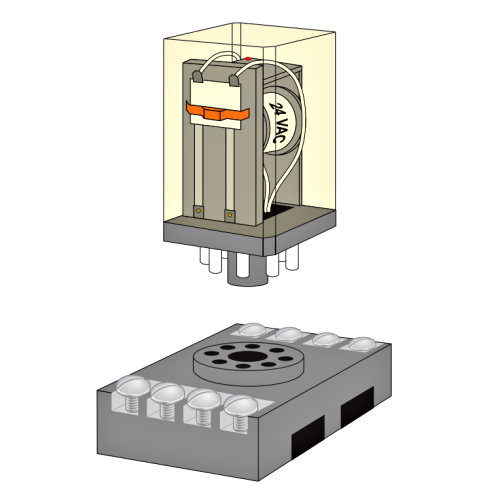

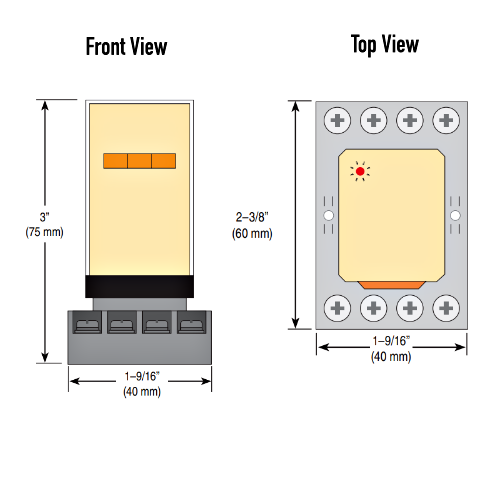

Tekmar 003 Relay With 24V Coil Tekmar 003 Electric 24V Coil Relay with LED Indicator Tekmar 003 Relay Top and Front View Dimensions Tekmar 003 Electric DPDT 24V Coil Relay Illustration

Tekmar 003 Relay With 24V Coil

SKU: 003
Tariff HS Code: 90330000
Rating:
Quantity Price Stock
1
Usually Ships 5-7 Days
$73.71     /ea
1
0
$0.00
0
$0.00
0
003
Tekmar 003 Electric Relay is a DPDT switch that opens 2 normally closed contacts and closes 2 normally open contacts when actuated with a 24VAC coil.  The relay isolates electric loads allowing higher current ratings compared to Tekmar controls on-board relay.

The relay features an LED indicator that lights on whenever the relay is energized and a test tab for manual override.  Suitable for boiler and pump applications that need more than a single output.
Ambient Temperature -40 F to 140 F (-40 C to 60 C)
Relay Contacts 10 mA 1 VDC
Power Supply 24V
Type DPDT Relay
No. of Poles 2
No. of Throws 2
