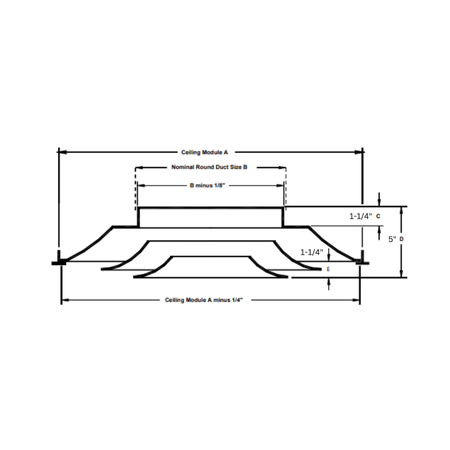

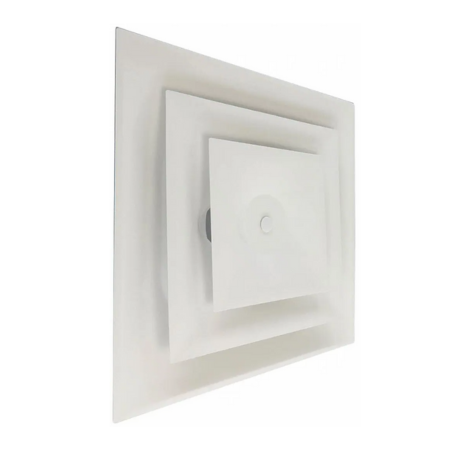

The Titus TMS-3-08-24X24 is a 24" x 24" square ceiling diffuser with a 3-cone design and an 8" neck. This component has a steel frame and aluminum flange.
The diffuser provides an improved airflow distribution by supplying air in a true 360º pattern with low-pressure drop. This also helps protect ceilings from striping and staining.
The TMS-3-08-24X24 is a direct replacement for TMS6-24X24-3-26. It can be easily and quickly installed or removed with a hex key. Suitable for commercial and industrial applications.
| Dimensions | 24" x 24" |
|---|---|
| Neck Size | 8" |
| Number of Cones | 3 Cones |
| Frame Material | Steel |
| Flange Material | Aluminum |
| Shape | Square |
| Product Type | Diffuser |
| Application | Ceiling |
Download Product Information:
