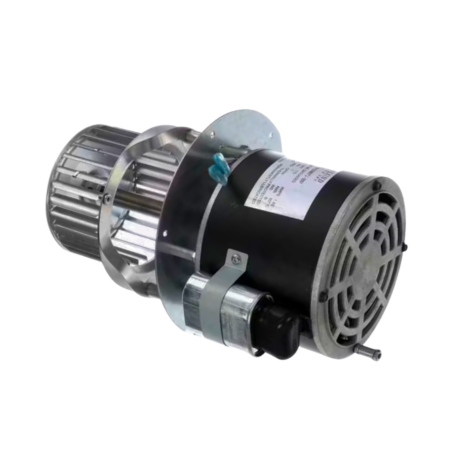

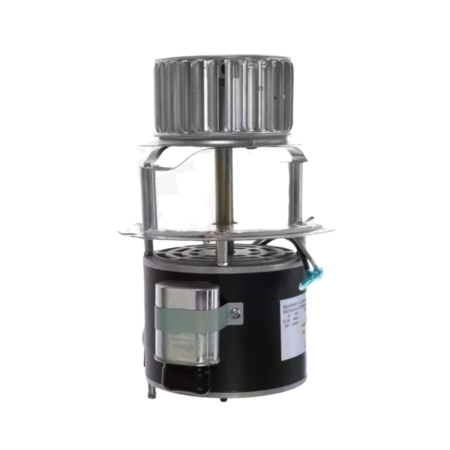

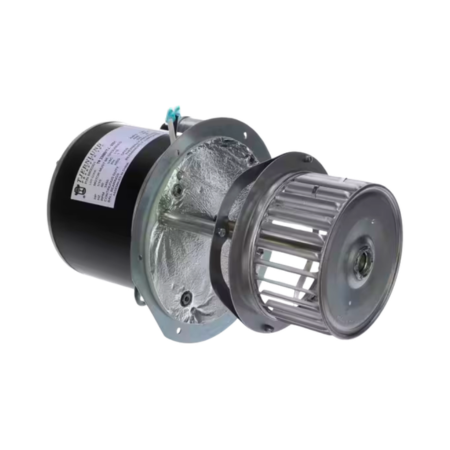

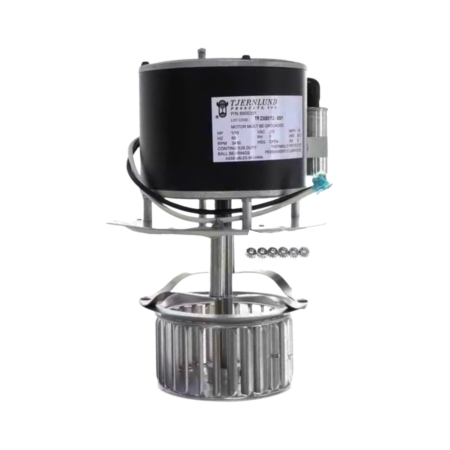

Tjernlund 950-0625 Motor with Blower Wheel Assembly
The Tjernlund 950-0625 is a replacement motor with blower wheel assembly designed for use with select Tjernlund side wall vent systems. This single-phase assembly operates at 115V, 60 Hz, with a 1/10 HP motor running at 3450 RPM.
The included blower wheel features a 5/8 inch bore for proper installation within compatible units. This replacement assembly is designed to help restore vent system operation and maintain reliable airflow performance.
The 950-0625 is compatible with Tjernlund SS1, SS1-R, and SS1C side wall vent systems. It is a practical replacement part for servicing worn or damaged motor and blower wheel assemblies.
| Voltage | 115V |
|---|---|
| Frequency | 60 Hz |
| Horsepower | 1/10 HP |
| Bore Size | 5/8” |
| Rotation Speed | 3450 RPM |
| Number of Phase | Single-Phase |
| Application | Side Wall Vent System |
Download Product Information:
Tjernlund (950-0625) SS1 Replacement Motor with Wheel Kit Instructions
