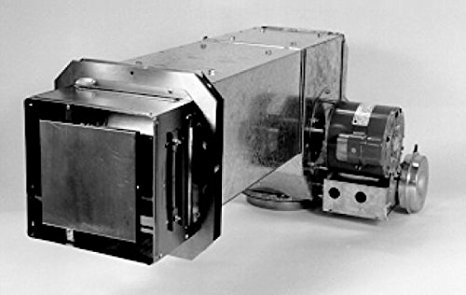

Tjernlund SS1 Sideshot Power Venter Side Shot

Name: Tjernlund SS1 Sideshot Power Venter Side Shot
Brand: Tjernlund
SKU: SS-1
Price: 1045.16 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Tjernlund SS1 Sideshot Power Venter Side Shot

SKU: SS-1

Brand:

Rating:

Quantity	Price	Stock
Usually Ships in 1 week Usually Ships in 1 week	$1,045.16 /ea	Usually Ships in 1 week

Add to Cart

Add to Wishlist

Shipping Note

Ships Via LTL ( Truck )

Add to Cart

Add to Wishlist

SideShot Series Vent Systems for Oil Fired Heater

The SideShot® models SS1 SideWall Vent Systems include the UC1 Universal Control for increased safety, performance and reliability. Designed for oil fired heating equipment or a deluxe gas vent system. Patented vent termination propels flue gases at high velocities away from the building exterior, a necessity when venting oil fired equipment. Both models can be installed with zero clearance to combustible materials and have stainless steel construction in critical areas. Factory wired safety and operating controls allow simple interlock with any burner. The new model SS2 features a self-cleaning stainless steel, backward inclined impeller and sealed ball bearing motor for virtually maintenance free installations. Ultra-fine draft adjustment and slide-out access to all internal components. Easy multiple appliance interlocks with our MAC Series multiple appliance controls.

Use to Side Wall Vent non-condensing oil fired boilers, water heaters and furnaces that otherwise would require a conventional roof top terminated chimney. Built-in interlock control with redundant high limit safety switch interfaces easily with thermostat, aquastat or primary controls. Adjustable pre & post purge timing and easy fault code retrieval. Stainless steel construction in all critical components including outdoor terminus. Patented design jets flue gases away from the outside wall to eliminate potential staining of siding. Model SS2 features slide out service drawer and material handling stainless steel impeller.

Natural Gas & Liquid Propane Capacity	50,000 to 160,000 Btu/hr
Flame Retention Oil Burner Capacity	50,000 to 220,000 Btu/hr (1.55 gal/hr max)
Convetional Oil Burner Capacity	50,000 to 180,000 Btu/hr (1.25 gal/hr max)
Maximum Equivalent Feet	50 Feet
