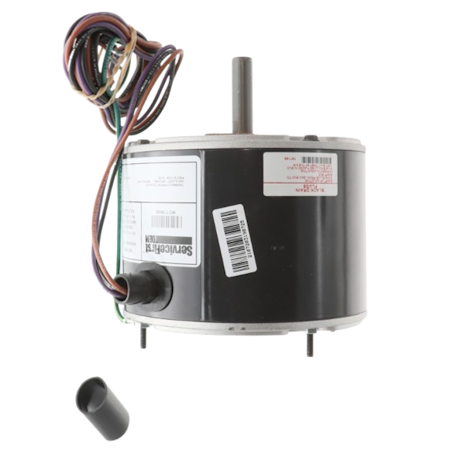

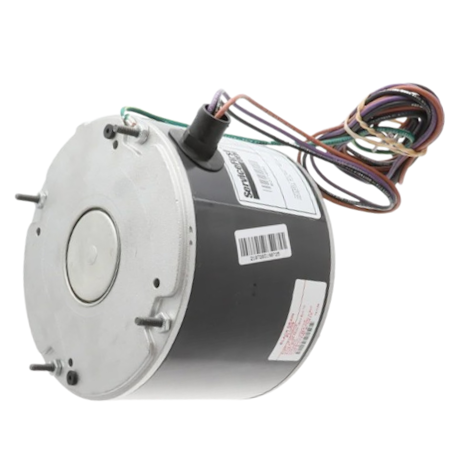

The Trane MOT18682 is a single-phase condenser fan permanent split capacitor motor rated at 1/12 HP, designed for 200 - 230 VAC operation and running at approximately 825 RPM.  It features a Totally Enclosed Air-Over enclosure and a NEMA 48Y frame, providing dependable protection and cooling.  The motor includes a 0.5" shaft diameter and is built for continuous, low-speed operation in HVAC applications.  The unit is CSA-certified and UL-recognized.

This motor operates at a single speed with counterclockwise lead-end rotation and uses a 5 MFD run capacitor for stable startup and performance.  The integrated thermal protector safeguards the motor against overheating, helping extend service life and ensure reliable operation in fan and blower assemblies.

This unit supports any mounting position, allowing flexible installation in air handlers, fan coils, and auxiliary HVAC equipment.  The MOT18682 directly replaces part numbers MOT3408 and MOT12404.
