Trane MOT18953 Motor 1/2 HP 200-230V 1075RPM

Name: Trane MOT18953 Motor 1/2 HP 200-230V 1075RPM
Brand: Trane
SKU: MOT18953
Price: 437.54 USD
Availability: InStock
Rating: 5 (2 reviews)

Images for general purposes only. Actual may be different than depicted.

Trane MOT18953 Motor 1/2 HP 200-230V 1075RPM

SKU: MOT18953

Brand:

Rating: (2)

Quantity	Price	Stock
14 Call 1-866-494-4610 for stock	$437.54 /ea	14

Add to Cart

Add to Wishlist

The MOT18953 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT8500 Motor 1/2 HP 200-230V 1075RPM	MOT8500 Brand Trane

Add to Cart

Add to Wishlist

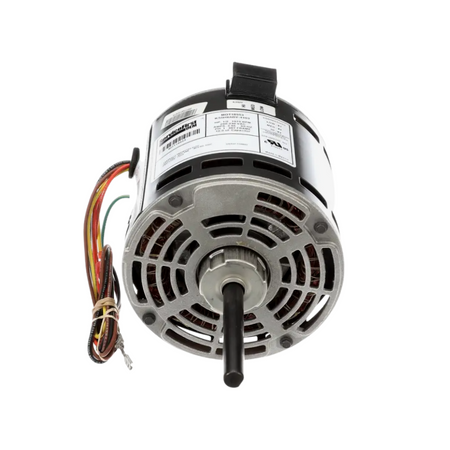

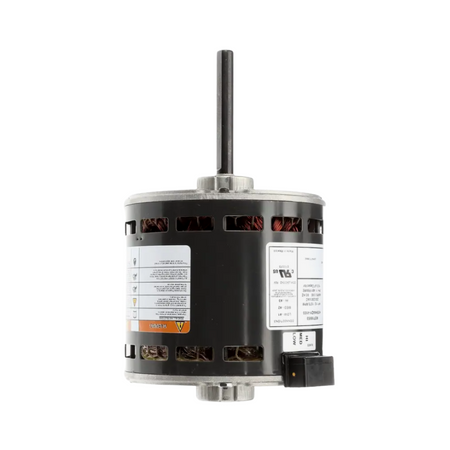

The Trane MOT18953 is a single-phase blower motor that operates with 1/2 Hp, 60 Hz, and 200-230V power ratings. The motor shaft has a 3-speed that rotates in a counterclockwise direction at 1075 RPM. UL Recognized.

The blower motor turns the fan that helps air circulate out of the system and into the rooms. This device is thermally protected and withstands Class F with 155 ⁰C for an ambient temperature of 40 ⁰C.

The MOT18953 is a direct replacement for MOT02636, MOT02637, MOT03137, MOT06359, MOT02609, MOT04567, and MOT08500. This component is compatible with the following model series:

AHCB030
BWV036A
TEV036A
TWV036A

AHCB035
BWV736A
TEV036B
TWV036B

AHVB030
BWV736P
TWE036C
TWV736A

BEV036A
BWV742G
TWE042C
2TEC3F42B

BWH742G
BWV942G
TWE060P

Number of Phase	Single-Phase
Horsepower	1/2 Hp
Frequency	60 Hz
Voltage	200-230V
Number of Speed	3-Speed
Rotation Speed	1075 RPM
Rotation Direction	Counterclockwise
Insulation Class	Class F
Frame Type	48Y Frame
Approval	UL Recognized

Write a Review

By Mark

from Houston TX

Yes, I would recommend this product to a friend or co-worker

5.0 Works great

Replaced this for my 20 year old Trane unit. Works great and havent had any issues since the install. Wires were different from OEM but I managed to figure it out and got it working.

By Trevor

from

Yes, I would recommend this product to a friend or co-worker

5.0

Purchasing was painless, motor and capacitor worked perfectly and it arrived on its eta.
