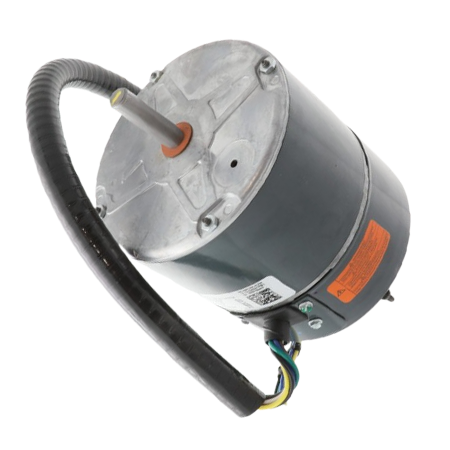

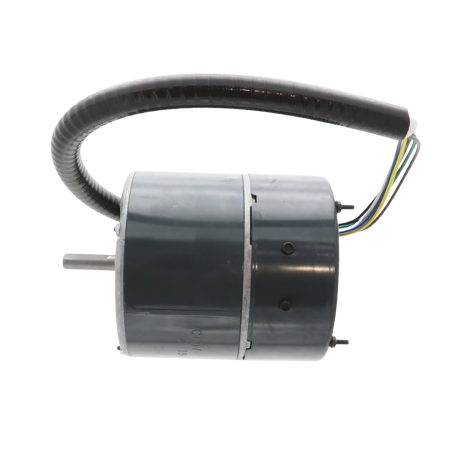

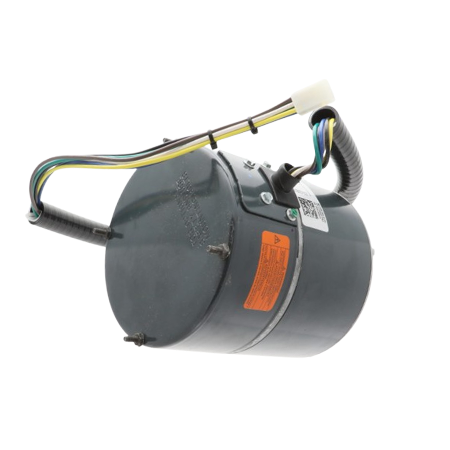

The Trane MOT19412 is a motor that has a power rating of 1/3HP and 200/230V operating at 850 RPM with a 50/60 Hz frequency. It is designed with a 48-frame ECM and features an open drip-proof (ODP) enclosure, Class B insulation, and ball-type bearings for durability and smooth operation. The motor is UL-recognized for safety and compliance.
The single-phase motor is electronically protected and designed for continuous air over (CAO) applications, making it ideal for HVAC systems. With a 1/2" shaft diameter and counterclockwise rotation, it provides reliable performance in various heating and cooling units.
The MOT19412 directly replaces part number MOT12005.
| Voltage | 200/230V |
|---|---|
| Frequency | 50/60 Hz |
| Number of Phases | Single-Phase |
| Horsepower | 1/3 HP |
| Rotation Speed | 850 RPM |
| Rotation | Counterclockwise |
| Shaft Diameter | 1/2" |
| Frame Size | 48 |
| Enclosure Type | Open Drip Proof |
| Approvals | UL-recognized |
By Edward
from North Bay ON
Yes, I would recommend this product to a friend or co-worker
The product is exactly what I needed, at a reasonable price and delivered seamlessly to Ontario, Canada with no issues.
