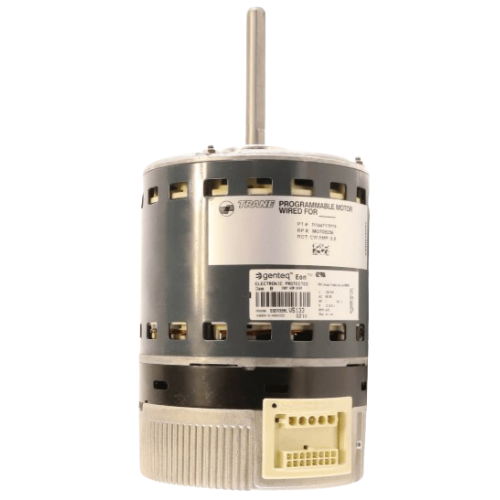

Trane MOT9256 is a single-phase OEM, electronically commutated. Rated at 1 HP, 208-230V, 1,050 RPM, and is UL Recognized, designed for HVAC/R and industrial applications.
Its totally enclosed air-over design protects against dust and debris for long-lasting performance.
With a 48-frame, 0.5-inch diameter, 3.5-inch shaft, Clockwise rotation, can be mounted horizontally or vertically.
| Voltage | 208-230V |
|---|---|
| Approvals | UL Certified |
| RPM | 1,050 |
| Rotation | Clockwise |
| Enclosure Type | Totally Enclosed Air-Over |
| Horsepower | 1 |
| Number of Speeds | 1 |
