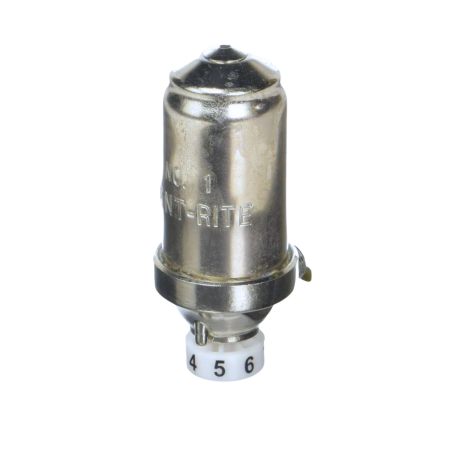

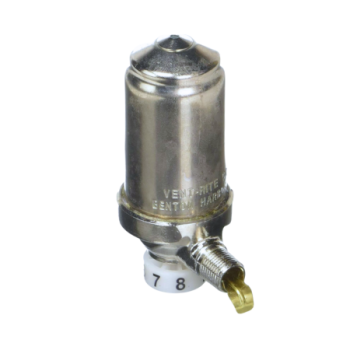

Vent-Rite #1 Air Vent Valve Adjustable Angle Steam 1/8"

Vent-Rite #1 Air Vent Valve Adjustable Angle Steam 1/8"
Images for general purposes only. Actual may be different than depicted.
Vent-Rite #1 Air Vent Valve Adjustable Angle Steam 1/8" Vent-Rite Air Vent Valves

Vent-Rite #1 Air Vent Valve Adjustable Angle Steam 1/8"

SKU: V-R1
Rating: (6)
Quantity Price Stock
33
Usually Ships 1 Week
$42.85     /ea
33
0
$0.00
0
$0.00
0
V-R1

Vent-Rite #1 Air Radiator Vent Valve with adjustable vent found under the steam path. The valve has a 1/8" male connection and a 3/32" vent port.  Operating pressure is up to 3 PSI maximum, the vent valve can allow slightly higher pressure as long as the pressure decreases and lesser than the operating pressure between each ring cycle.  Applicable for free standing radiators.

The Vent-Rite Valves operate in a positive action manner and straight-line venting.  The internal parts are made of brass and nickel-plated & polished exterior.  Provides fast response and uniform heat distribution to the radiator.  Controlled venting is necessary to balance the radiation. During temperature change, the vent will automatically vent the air by continually opening and closing in maximum operating pressure.  Safe to use that in an unexpected situation, the vent port will be automatically closed and filled with water.

Vent-Rite Valves replaces the Dole #1A and Hoffman #1A vents.

Height 3-1/4"
Operating Pressure 3 PSI
Application Free Standing Radiators
Connection 1/8" Male
Vent Port 3/32"

Download Product Information:

Vent-Rite Air Vent Valves Brochure

By Jose

from

Yes, I would recommend this product to a friend or co-worker

5.0 Best adjustible steam radiator air vent

The manufacturing quality is excellent; I've purchased at least two dozen so far and each has worked flawlessly. This was not the case with adjustable air vents from other manufactures. The adjusting mechanism is very easy to operate. This device simply operates well and is worth the price.


By Gabriella

from

Yes, I would recommend this product to a friend or co-worker

5.0 Just what I needed!

I bought 6 of these valves to replace my old ones on steam radiators in my new home. Easy install, and love the feature where you can open the valve from 1-8 and choose your air dispensing power. Thank you!


By Jose

from

Yes, I would recommend this product to a friend or co-worker

5.0 It works!

I manage a 30 unit building with 3 to 7 radiators in each unit. This is the only adjustable steam air vent that I've personally tried that really works. The build quality is also excellent.I've tried others that too often fail at fully trapping the air, and or have very inconsistent performance due to manufacturing defects. It's best to properly balance your steam distribution but if that proves too difficult, this is the best adjustable air vent on the market.

Response:
Jose,

Thank you so much for the detailed review and great tip regarding balancing the air stream.  This will help others. We are so happy the Vent-Rite #1 air vent is working for you.

Ori
Response on May 19, 2022 at 11:33AM by Ori from Industrial Stores

By David

from

Yes, I would recommend this product to a friend or co-worker

5.0 Its like magic

I'm a newbie to steam due to buying a 1925 house, and wanted to get the system optimized. Dan Holohan and my local plumber both said "replace those vents" and the adjustable helps tune the radiators for heat in the right places. I like that the numbers have a clear relationship to the aperture.


By George

from

Yes, I would recommend this product to a friend or co-worker

5.0 Vent-Rite #1

I ordered 10, standard shipping, and they arrived the next day! (I'm in eastern MA.) Brand new in original packaging. Solid product; they don't feel cheaply made. It's just been a few months, but all good so far. I had a problem putting credit card info online, so I called up, which I hate to do, but it was soooo easy. That was nice.


By Tim

from Somerville MA

No, I would not recommend this product to a friend or co-worker

1.0 Avoid this Business

I purchased a two day delivery order for steam vents. Industrial could not deliver for 10 days. I canceled the order.

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Is the "8" setting the full open position?
Asked on Mar 04, 2022 by Patrick from Portland Maine
1 Answers

Have an answer? Click Here

A:
The Vent-Rite #1 Air Vent Valve has a dial numbered 1-8 to adjust the size of the opening.
Setting the dial to '8' allows for the largest opening.
Replied on Mar 04, 2022 by Brian from Industrial Stores
