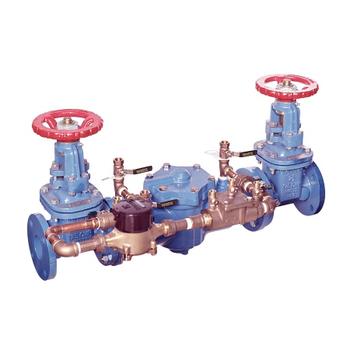

Watts 0062515 Double Check Detector Assembly 2-1/2" (007DCDA-LF-GPM)

Watts 0062515 Double Check Detector Assembly 2-1/2" (007DCDA-LF-GPM)
Images for general purposes only. Actual may be different than depicted.
Watts 0062515 Double Check Detector Assembly 2-1/2" (007DCDA-LF-GPM)

Watts 0062515 Double Check Detector Assembly 2-1/2" (007DCDA-LF-GPM)

SKU: 0062515
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$10,383.70     /ea
Usually Ships 1-2 Weeks

Shipping Note

Ships by Truck (LTL)

0
$0.00
0
$0.00
0
0062515
Watts Series 007DCDA Double Check Detector Assemblies

Series 007DCDA Double Check Detector Assemblies prevent the backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. Its compact epoxy coated cast iron unibody and modular check design facilitate simple and easy installation and maintenance. Maximum Working Pressure: 175psi (12.06 bar).

Features:

  • Fused epoxy coated cast iron unibody 21⁄2" – 3" (65 – 80mm)
  • Replaceable seats
  • Maximum flow at low pressure drop
  • Compact for ease of installation
  • Design simplicity for easy maintenance
  • No special tools required for servicing
  • Bronze body ball valve test cocks
  • Modular spring loaded checks
  • Furnished with bronze 5⁄8" x 3⁄4" (16 x 19mm) meter
Connection Size 2 1/2 inch
Temperature Range 33˚F – 110°F (0.5˚C – 43°C) continuous, 140°F (60°C) intermittent
Maximum Working Pressure 175psi (12.1 bar)
Body Material Epoxy Coated Cast Iron
Discs Silicone
Springs Stainless Steel
