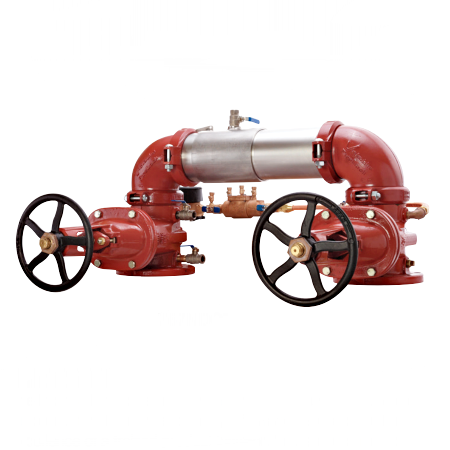

Watts Series 757DCDA Double Check Detector Assemblies

Series 757DCDA, 757NDCDA Double Check Detector Assemblies prevent the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. Its compact housing consists of two independently operating tri-link check valves, two shutoff valves, and four test cocks. It features a stainless steel housing and sleeve and is 70% lighter than traditional designs. Series 757, 757N is designed for non-health hazard applications and may be installed under continuous pressure service to protect against both backpressure and backsiphonage. This Series is used primarily on fire sprinkler lines when it is necessary to monitor unauthorized use of water. Maximum Working Pressure: 175psi (12.06 bar).

FEATURES:


• Extremely compact design
• 70% Lighter than traditional designs
• 304 (Schedule 40) stainless steel housing & sleeve
• Groove fittings allow integral pipeline adjustment
• Patented tri-link spring check provides lowest pressure loss
• Unmatched ease of serviceability
• Available with grooved butterfly valve shutoffs
• May be used for horizontal, vertical or N pattern installations
• Replaceable check disc rubber
