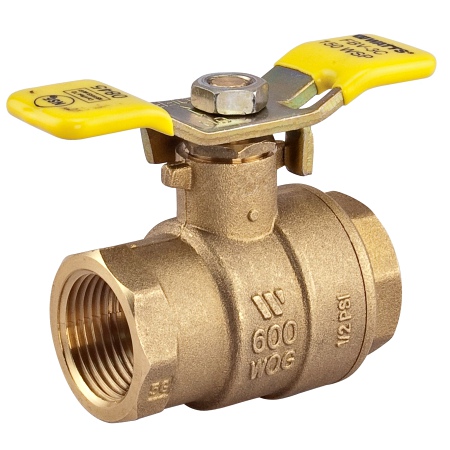

Watts Series LFFBVS-3C Lead Free Full Port Brass Ball Valve

Series LFFBVS-3C 2-piece, full port, Lead Free* ball valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated Lead Free* brass ball, copper silicon alloy brass adapter, and steel handle. The Series LFFBV-3C, LFFBVS-3C features Lead Free* construction to comply with Lead Free* installation requirements.

This 0123492 3/4 inch 2-piece full port lead free ball valve features a lead free brass body with threaded end connections, bottom-loaded blowout proof stem, virgin PTFE seat, thrust washer, adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and tee handle handle. The pressure rating is 600 psi WOG and 150 psi WSP.

Features:

• Lead Free* forged copper silicon alloy body and adapter
• Certified to NSF/ANSI standard 61/8
• CSA approved threaded valves only 1⁄4" – 3"
• UL/FM approved threaded valves 1⁄4" – 2"
• FM approved solder valves 1⁄2" – 2"
• UL Listed solder valves 1⁄2" – 2"
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Adjustable stem packing gland • PTFE stem packing seal, thrust washer, and seats
• Bottom loaded blowout proof stem
• Machined chrome plated Lead Free* brass ball
• Valves comply to MSS-SP-110 standard
