Watts Series LFBD Brass Boiler Drain Shutoffs
Series LFBD Brass Boiler Drain Shutoffs are for use in commercial and residential hydronic heating systems. It consists of a Lead Free* brass body construction with 3/4 in. hose thread connection on outlet side, Teflon stem packing, and cast iron handwheel. Available in various dual solder or IP connection models, and angle or straight pattern models.

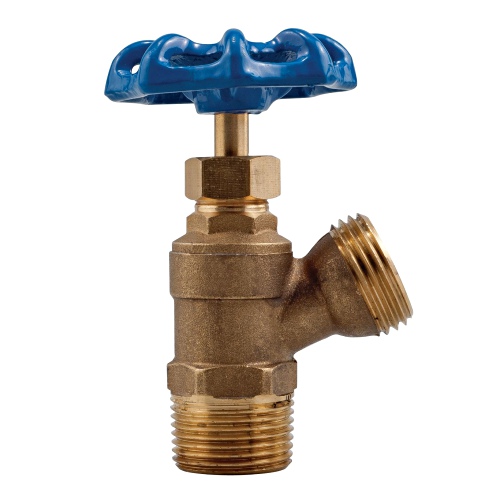

This 0123619 3/4 inch lead free angle pattern boiler drain shutoff consists of a lead free body construction with 3/4 inch hose thread connection on outlet side, 3/4 inch male IP inlet, Teflon stem packing, and cast iron handwheel. The maximum pressure is 200 PSI (14 BAR) WOG and maximum temperature is 180 degrees F (82 degrees C).
FEATURES:
| Material | Brass |
|---|---|
| Inlet/Outlet Connection Size | 3/4 IN |
| Inlet/Outlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Outlet Thread Type | GHT |
| Maximum Pressure | 200 psi |
| Maximum Working Pressure | 200 psi |
| Maximum Temperature | 180F |
| Maximum Operating Temperature | 180F |
Download Product Information:
Watts Series LFBD Brass Boiler Drain Shutoffs Technical Datasheet
