Watts Series 1156F Feed Water Pressure Regulators

Series 1156F feed water pressure regulators are designed to fill the boiler and system piping with water and to maintain water pressure in the system at all times. These valves also provide make up water to the system in the event of system leaks. Series 1156F features a high capacity performance as well as unique simplified servicing accessibility for complete unitized maintenance.

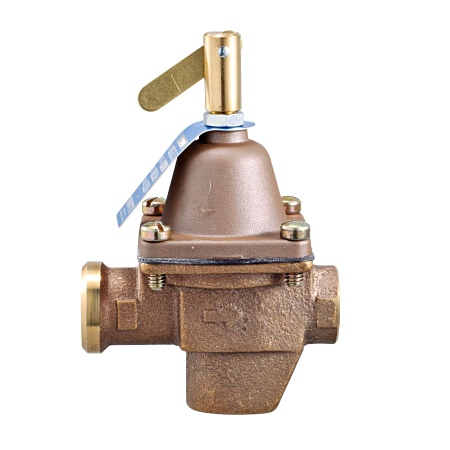

This 0386423 1/2" inch high capacity feed water pressure regulator is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It consists of a bronze body with union threaded inlet and NPT threaded outlet connections, a tight seating check valve, stainless steel strainer, and purge lever for manual purging. It has high capacity performance and a simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems. The maximum pressure is 100 psi (6.9 bar).

FEATURES:


• Choice of inlet connections (threaded, union solder or union threaded)
• Tight seating check valve
• Purge lever for manual purging
• High capacity
• Stainless steel strainer to protect the valve disc from fouling
