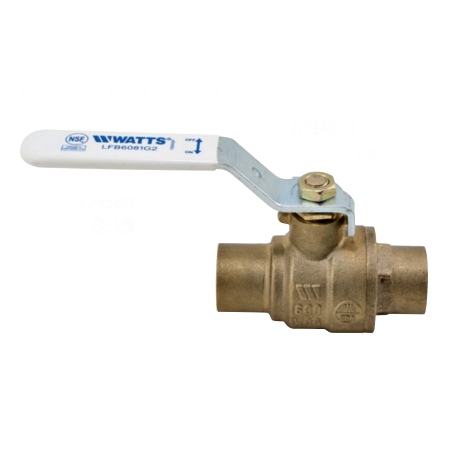

Watts 0450108 Lead Free Full Port Bronze Ball Valve 3/8" LFB6081G2

Watts 0450108 Lead Free Full Port Bronze Ball Valve 3/8" LFB6081G2
Images for general purposes only. Actual may be different than depicted.
Watts 0450108 Lead Free Full Port Bronze Ball Valve 3/8" LFB6081G2

Watts 0450108 Lead Free Full Port Bronze Ball Valve 3/8" LFB6081G2

SKU: 0450108
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$39.19     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
0450108

Watts Series G2 Full Port Lead Free Bronze Ball Valve

The Watts G2 series offers 2-Piece, Full Port Lead Free Bronze Ball valve used commercial and industrial applications. The valves feature a blowout proof stem and a full-port orifice to ensure minimal pressure drop. The G2 series offers solder and NPT end-connections with Lead Free NSF-372 certification.

This 0450108 3/8 inch lead free 2-piece full port bronze ball valve with a solder end connection is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop and the overall robust design provides lasting service. This ball valve is rated for 600 WOG/150 WSP.

Features:

  • Lead Free*, forged bronze body and adapter
  • Full-port flow
  • Full range of sizes from 1⁄4" – 2" (8 - 50mm)
  • Certified to NSF 372
  • Minimal pressure drop due to large ports
  • Blowout proof, pressure retaining stem
  • Adjustable stem packing gland
  • White handles for easy Lead Free* identification
  • BAA Compliant
  • Used in commercial and industrial applications for a full range of liquids and gasses.
Ball Material Chrome Plated Brass
Body Material Bronze
Inlet/Outlet Connection Size 3/8 inch
Inlet/Outlet Connection Type Socket
Temperature Range 0°F - 400°F (-18°C – 205°C) @ 50psi (3.4 bar)
Seat/Stem Packing/Thrust Washer Material Virgin PTFE
Pressure Range 600psi (41 bar) WOG, non-shock; 150psi (10.3 bar) WSP
