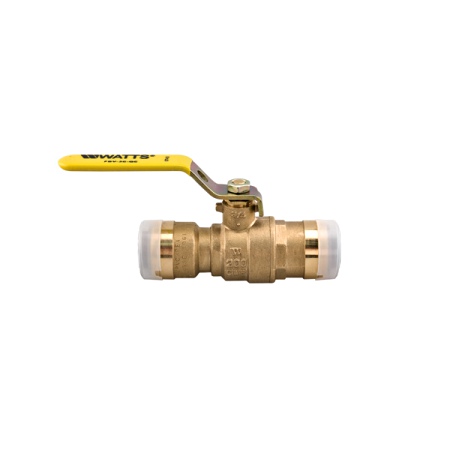

Watts 0555270 Full Port Ball Valve Quick-Connect 3/4" LFFBV-3C-QC

Watts 0555270 Full Port Ball Valve Quick-Connect 3/4" LFFBV-3C-QC
Images for general purposes only. Actual may be different than depicted.
Watts 0555270 Full Port Ball Valve Quick-Connect 3/4" LFFBV-3C-QC

Watts 0555270 Full Port Ball Valve Quick-Connect 3/4" LFFBV-3C-QC

SKU: 0555270
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$99.75     /ea
Usually Ships 1-2 Weeks
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
0555270
Watts Series LFFBV-3C-QC Lead Free Full Port Brass Ball Valves with QC Technology

Series LFFBV-3C-QC 2-piece, Full-Port Lead Free* copper silicon alloy Quick-Connect Ball Valves are ideal for use in residential and commercial potable water applications. They feature a bottom-loaded blowout proof stem, virgin PTFE seats, thrust washer, and adjustable packing gland, stem packing nut, chrome-plated Lead Free* brass ball, Lead Free* copper silicon alloy adapter, and steel handle. The LFFBV-3C-QC features Lead Free* construction to comply with Lead Free* installation requirements.

This 0555270 3/4 inch 2-piece full port lead free ball valve with female threaded end connections is used in residential and commercial potable water applications.The temperature range is minus 40 to 180 degrees F (minus 40 to 82 degrees C). The pressure rating is 200 psi (13.8 bar) at 180 degrees F (13.8 bar at 82 degrees C).

Features:

  • Lead Free* copper silicon alloy body
  • Watts integral Quick-Connect inlet and outlet connections
  • Can be used with Copper, CPVC, and PEX pipe
  • Approved to ASSE 1061
  • Comes with pipe stiffeners for use with PEX
  • Adjustable stem packing gland
  • Virgin PTFE stem packing seal, thrust washer, and seats
  • No thread sealants, solders or glues needed
  • Can be rotated under pressure
  • Bottom loaded blowout proof stem
  • Can be removed and reused without the use of tools
Ball Material Chrome Plated Brass
Body Material Lead Free Copper Silicon Alloy Brass
Inlet/Outlet Connection Size 3/4 inch
Inlet/Outlet Connection Type Quick-Connect
Temperature Range -40°F to 180°F (-40°C to 82°C)
Pressure Rating 200psi @ 180°F (13.8 bar @ 82°C)
Seat/Stem Packing/Thrust Washer Material Virgin PTFE
