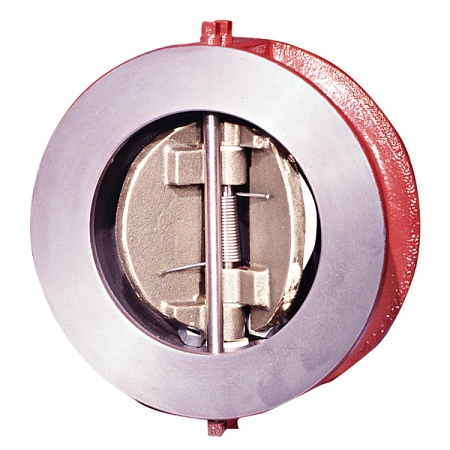

Watts Series ICV-125-2-2-T Cast Iron Wafer Check Valves

Series ICV-125-2-2-T Cast Iron Wafer Check Valves are designed for HVAC and general service applications. They are lighter, more compact, utilize half the number of studs for installation and in some sizes offer more flow capacity than conventional swing check valves. The two spring-loaded plates close when the flow decreases, without the necessity of reverse flow. The Series ICV-125-2-2-T is designed and tested according to API 594 for use between ANSI Class 125 or 150 flanges. The ICV-125-2-2-T features Lead Free* construction to comply with Lead Free* installation requirements.

This Cast Iron Wafer Check Valve, Watts 0625508 12 IN Model ICV-125-2-2-T, is used in commercial and industrial HVAC applications to prevent water hammer and reverse fluid flow in water lines. It features a cast iron body with aluminum-bronze disc plate, Buna-N seat, PTFE bearings, stainless steel hinge and stop pins, steel plug and eye bolt, and stainless steel springs. The maximum pressure is 200 psi.

FEATURES:
