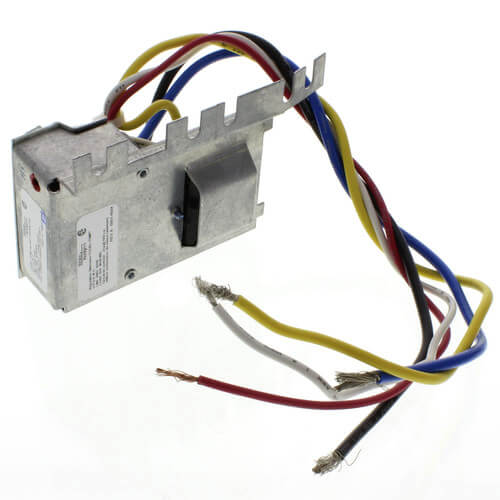

White Rodgers Type 24A07 Slimline Level-Temperature Sensor Silent Operator Relay

These Level-Temp Silent Operator relays are designed for use on electric heating equipment in conjunction with White-Rodgers low voltage thermostats. They are especially suitable for use on baseboards, wall insert heaters, etc. Some models also have an inductive rating to permit them to be used on motor loads where a time delay is desired. Different models of these Silent Operator relays are available for voltage inputs of 120, 208, 240, 277, 347 or 600 volts. Since these relays are equipped with a selfcontained transformer, the supply voltage used must agree with the voltage rating of the relay. When required, two or more of these Silent Operator relays can be operated by one low voltage heating thermostat. These Silent Operator relays have been carefully adjusted at the factory. No attempt should be made to adjust them in the field.

Features:

• Level-Temp allows low voltage 2-wire thermostat to control line voltage loads such as baseboard heaters.
• Conduit hub or screw mounting.
• Ideal for all types of electrical heat.
• Non-critical mounting angle. Universal break-off mounting tabs.
• Dual Level-Temp capable of controlling two separate loads.
