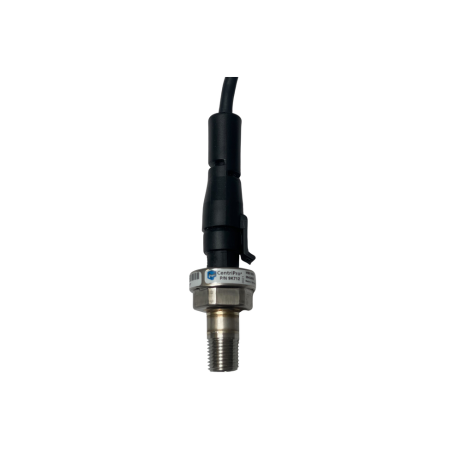

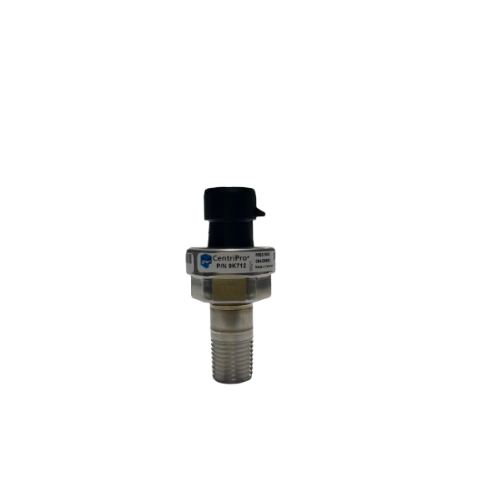

The Xylem-Goulds Pumps 9K712 is a pressure transducer with 4-20mA output and 9-28 VDC input supplies. It can hold a maximum of 300 psi through a 1/4” NPT pressure port. CE Marked.

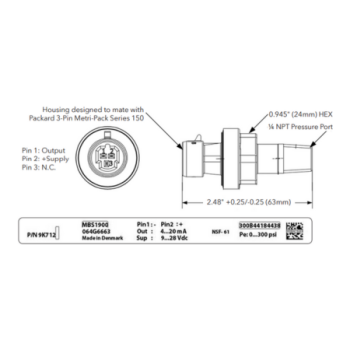

The pressure transducer is also known as a sensor or transmitter that measures pressure and converts it to an electrical signal. This device has housing designed for Packard 3-Pin Metri-Pack Series 150.
The 9K712 is the direct replacement for the obsolete model number 9K515. Suitable for use with CentriPro Aquavar IPC, Hydrovar, SPD, or CPC pump controllers in the following industrial applications:
| Application | Pump Controllers |
|---|---|
| Approval | CE Marked |
| Maximum Pressure | 300 psi |
| Input Supply | 9-28 VDC |
| Output Supply | 4-20mA |
| Product Type | Pressure Transducer |
| Connection Size | 1/4" NPT Pressure Port |
| Length | 2.48” (63mm) |
| Operating Temperature Range | -20 to 80°C |
| Accuracy at 20C | < +/- 1% FS |
