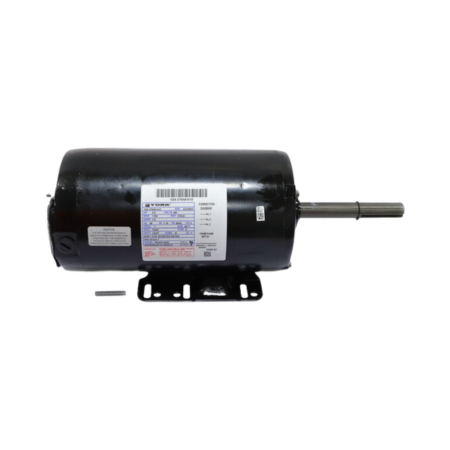

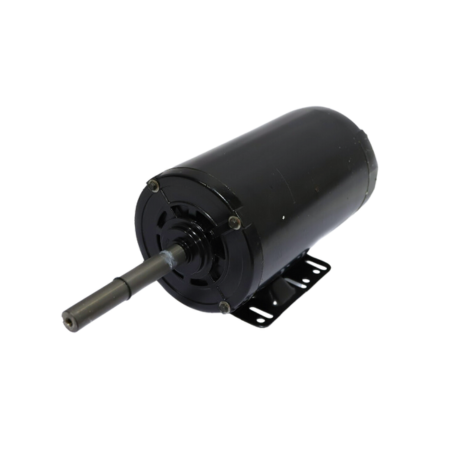

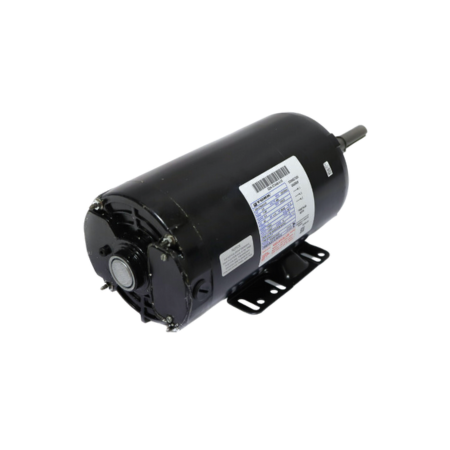

York 024-37648-615 Motor Replacement 3-Phase 2Hp 460V 60 Hz 1150 RPM CWLE

York 024-37648-615 Motor Replacement 3-Phase 2Hp 460V 60 Hz 1150 RPM CWLE
Images for general purposes only. Actual may be different than depicted.
York 024-37648-615 Motor Replacement 3-Phase 2Hp 460V 60 Hz 1150 RPM CWLE York 024-37648-615 Motor Replacement 3-Phase 2Hp 460V 60 Hz York 024-37648-615 Motor Replacement 3-Phase 2Hp 460V 60 Hz 1150 RPM CWLE

York 024-37648-615 Motor Replacement 3-Phase 2Hp 460V 60 Hz 1150 RPM CWLE

SKU: 024-37648-615
Rating:
Quantity Price Stock
5
Usually Ships 2 - 4 Weeks
$781.18     /ea
5
0
$0.00
0
$0.00
0
024-37648-615
The York 024-37648-615 is a 3-phase motor replacement that operates at 3.4A, 2Hp, 60 Hz, and 460V power ratings.  UL Recognized.

The motor has a 7/8” shaft diameter that rotates continuously at 1150 RPM in a clockwise lead-end direction.

It features a 56HZ frame, a totally enclosed air-over (TEAO) enclosure, and a Class F insulation that can handle 65°C ambient temperature.

The 024-37648-615 is a replacement part for commercial or industrial air-cooled condensers and fluid coolers.
Power Ratings 2Hp, 60 Hz, 460V
Shaft Diameter 7/8"
Rotation Speed 1150 RPM
Rotation Direction CWLE
Enclosure Type Totally Enclosed Air Over (TEAO)
Frame Size 56HZ
Service Factor 1.15
Insulation Class Class F
Ambient Temperature 65°C
Duty Continuous
