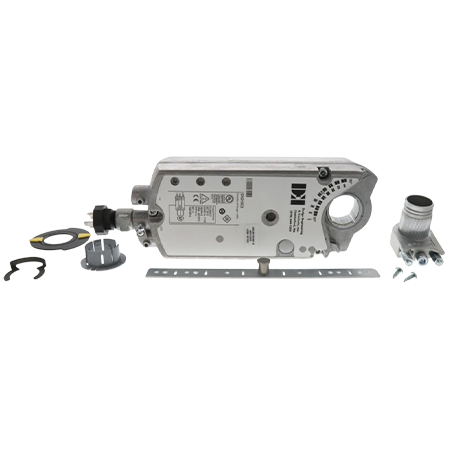

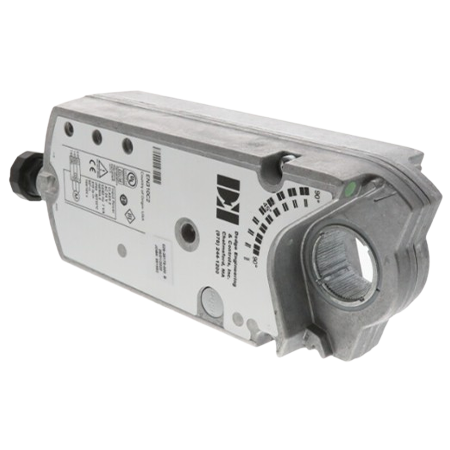

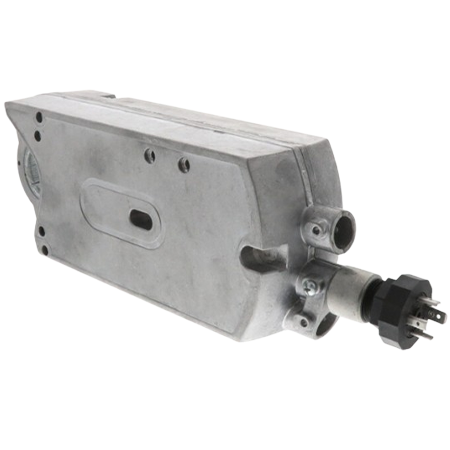

York 025-38178-000 Electric Actuator

Name: York 025-38178-000 Electric Actuator
Brand: York
SKU: 025-38178-000
Price: 2119.04 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

York 025-38178-000 Electric Actuator

SKU: 025-38178-000

Brand:

Rating:

Quantity	Price	Stock
26 Usually Ships 1 - 2 Weeks	$2,119.04 /ea	26

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 025-38178-000 is an electric actuator that has an electrical rating of 24V, 50/60 Hz, and 7 VA. It has a torque rating of 266 in-lb with a rotation of 90-degree angle. CE-marked and UL-listed.

The electric actuator is used to convert electrical energy into mechanical motion. The unit is designed with a NEMA 2 housing and IP54 water resistance rating that can withstand -32 to 55°C temperatures.

Voltage	24V
Water Resistance Rating	IP54
Angle Range	90°
Frequency	50/60 Hz
Power Consumption	7 VA
Temperature Range	-32 to 55°C
Enclosure Rating	NEMA 2
Approvals	CE-marked and UL-listed
