York S1-33102977000 2 Stage ECM Control Board Kit

Name: York S1-33102977000 2 Stage ECM Control Board Kit
Brand: York
SKU: S1-331-02977-000
Price: 370.18 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

York S1-33102977000 2 Stage ECM Control Board Kit

SKU: S1-331-02977-000

Tariff HS Code: 9032896025

Brand:

Rating:

Quantity	Price	Stock
7 Call 1-866-494-4610 for stock	$370.18 /ea	7

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

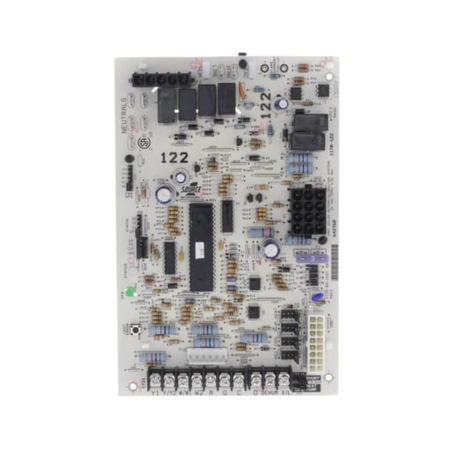

The York S1-33102977000 is a two-stage ECM control board kit that consists of a control board and 16 pin wiring harness.

The control board is called the brain of the unit. This device manages the system's operation, from monitoring sensors and safety switches.

The S1-33102977000 directly replaces the following model numbers:

S1-33102977000
S1-03101909000
S1-33102955000
S1-33109169000
S1-03109118000
S1-03109169000

Applicable to the following Furnace Models:

TM8V060A12MP11
TM8V080C16MP11
TM8V100C20MP11
TM9V040A10MP11
TM9V080B12MP11
TM9V100C16MP11
TM9V120D20MP11
TMLV080B12MP11
TMLV100C16MP11

TM8V060A12MP11
TM8V080C16MP11
TM8V100C20MP11
TM9V040A10MP11
TM9V080B12MP11
TM9V100C16MP11
TM9V120D20MP11
TMLV080B12MP11
TMLV100C16MP11
TMLV120C20MP11

TM8V080B12MP11
TM8V100C16MP11
TM8V120C20MP11
TM9V060B12MP11
TM9V080C16MP11
TM9V100C20MP11
TMLV060A12MP11
TMLV080C16MP11
TMLV100C20MP11
TMLV120C20MP11

TM8V080B12MP11
TM8V100C16MP11
TM8V120C20MP11
TM9V060B12MP11
TM9V080C16MP11
TM9V100C20MP11
TMLV060A12MP11
TMLV080C16MP11
TMLV100C20MP11

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Does the control board kit come with a cable to connect with the blower motor (not shown in picture)

Asked on October 05, 2020 by W from San Jose CA

1 Answers

Have an answer? Click Here

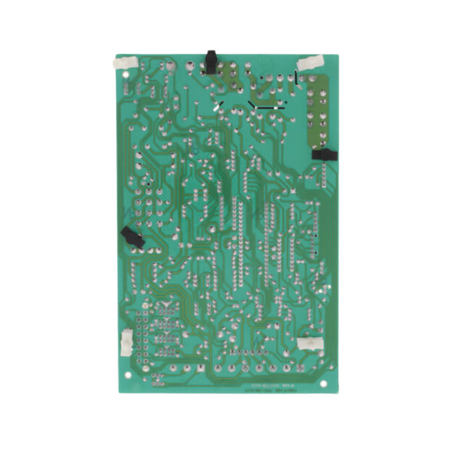

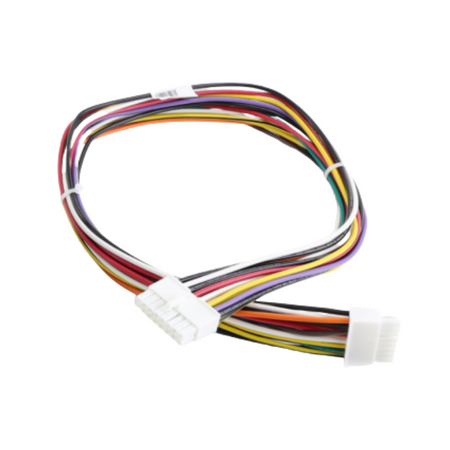

Please have a look at images 2 and 3 which show the included wiring/cable harness assembly that is used to connect the control board to the blower motor.

Replied on October 05, 2020 by Ori from Industrial Stores

I have the older version that this board is supposed to replace. It has a 3 black pin connector instead of 5 and no 16-pin connector. This is the board I have: https://www.ebay.ca/itm/York-Luxaire-Coleman-031-09118-000-Furnace-Control-Circuit-Board-67299/273469124352?hash=item3fac07af00:g:~NAAAOSwoPpaT-9f How will this work? Contact me by email for more details if you need.

Asked on January 14, 2019 by Guillaume from ontario, canada

1 Answers

Have an answer? Click Here

Ok, the parts breakdown for that model is the 031-09118-000 however that is no longer available. It has been replaced by the S1-331-02977-000 which is currently in stock.

Replied on January 14, 2019 by Ron from Industrial Stores
