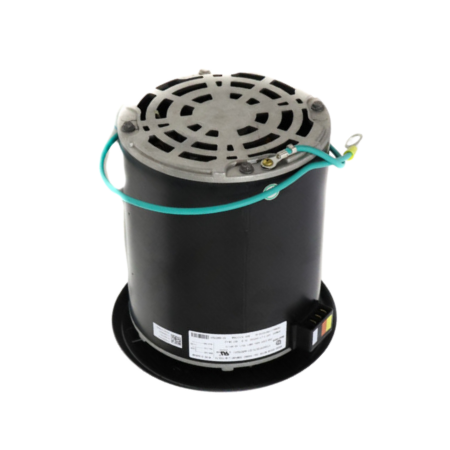

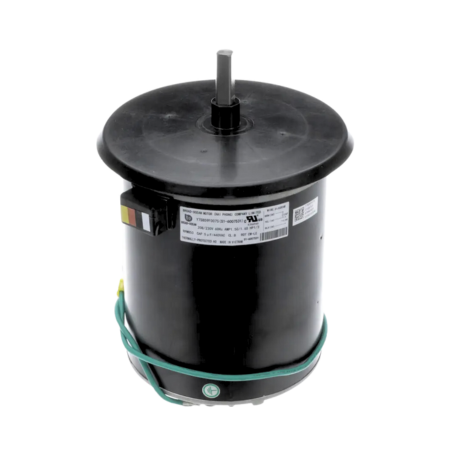

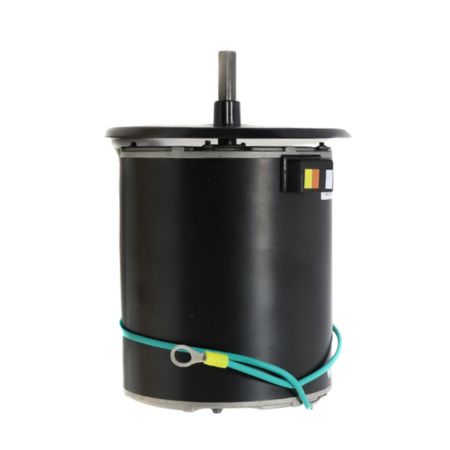

York S1-6007531 Condenser Fan Motor 1-Phase 208/230V 60 Hz 850 RPM CCWLE

York S1-6007531 Condenser Fan Motor 1-Phase 208/230V 60 Hz 850 RPM CCWLE
Images for general purposes only. Actual may be different than depicted.
York S1-6007531 Condenser Fan Motor 1-Phase 208/230V 60 Hz 850 RPM CCWLE York S1-6007531 Condenser Fan Motor 1-Phase 208/230V 60 Hz York S1-6007531 Condenser Fan Motor 1-Phase 208/230V 60 Hz 850 RPM CCWLE

York S1-6007531 Condenser Fan Motor 1-Phase 208/230V 60 Hz 850 RPM CCWLE

SKU: S1-6007531
Rating:
Quantity Price Stock
36
Usually Ships 1 - 2 Weeks
$382.02     /ea
36

The S1-6007531 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
York S1-02434550001 1/3 Hp 208-230 V 850RPM Fan Motor S1-024-34550-001

Brand York
York S1-02434550001 1/3 Hp 208-230 V 850RPM Fan Motor
0
$0.00
0
$0.00
0
S1-6007531
The York S1-6007531 is a single-phase condenser fan motor that operates at 1/3Hp, 208/230V, and 60 Hz.  UL Recognized.

The condenser fan motor has a 48Y frame and ball-bearing system.  This device is thermally protected and has Class B insulation.

The motor shaft has a 1/2" diameter and 2-1/2" length that rotates at 850 RPM in a counterclockwise lead-end direction at 1-speed.

The S1-6007531 is a direct replacement for S1-024-34550-001.  It is compatible with furnaces, air conditioners, and heat pumps.
Frequency 60 Hz
Full Load Amps 1.50/1.65A
Rotation Speed 850 RPM
Rotation Direction CCWLE
Motor Speed 1-Speed
Approval UL Recognized
Number of Phase Single-Phase
Voltage 208/230V
Capacitor Required 5MFD @ 440VAC
Insulation Class Class B
