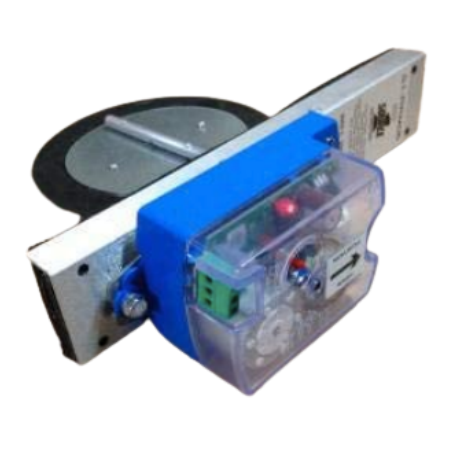

York S1-RRM06 Retro Round 24V Power Open-Close 6" Zoning Damper.
The damper is simply inserted into rigid metal branch ducts. The single blade is powered open and close to control the ow of air to each outlet. The S1-RRM damper blade has a wide wiper seal to seal against the inside of the ducts.
The S1-RDM can be used for zone control or as the motorized damper for by-pass air when controlled by the Static Pressure Switch, Model S1-SPS. It is designed to also handle high pressure air conditioning systems up to 4”S.P. The simple 3 wire motor has a Red motor release button that allows the damper blade to be manually rotated without harm to the motor. It also has LED position indicators that illuminate GREEN when Open and RED when Closed. The motor actuator delivers up to 18 in/lbs of torque that powers the S1-RRM open and closed. This powerful motor allows the damper to handle higher than normal static pressure, up to 3”W.C. Multiple dampers can be wired in parallel. Up to 12 dampers per 40VA transformer. When more than 12 dampers are required use a larger VA transformer. Each motor requires 3VA.
FEATURES:
• Plug-and-play wiring
• Power open and close
• LED damper position indicators
• Rubber gasket seal
