Zone First T24 Transformer 24V 40Va

Zone First T24 Transformer 24V 40Va
Images for general purposes only. Actual may be different than depicted.

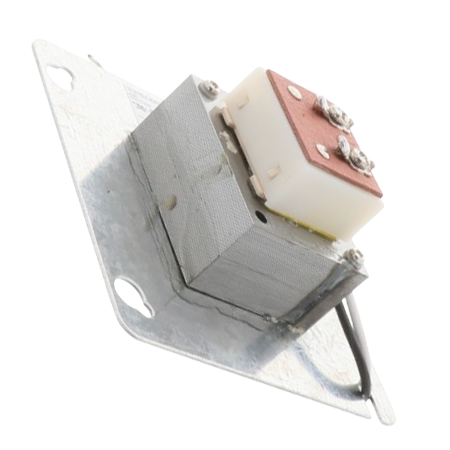

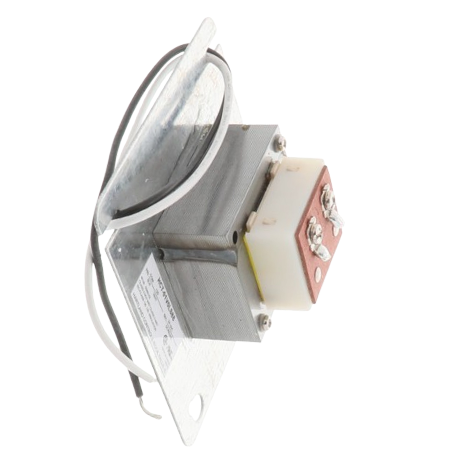

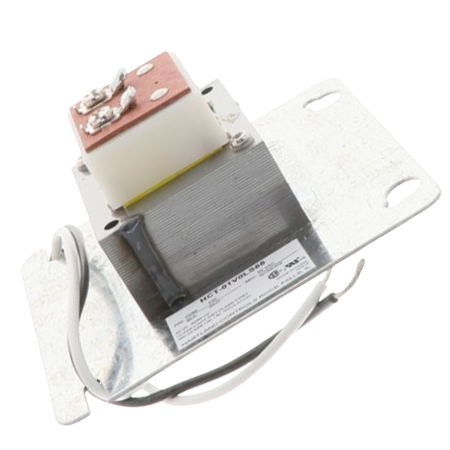

Zone First T24 Transformer 24V 40Va Zone First T24 Transformer 40VA Zone First T24 Transformer 120 Primary 24V Secondary

Zone First T24 Transformer 24V 40Va

SKU: T24
Rating: (1)
Quantity Price Stock
Usually Ships 2 - 3 Weeks
Usually Ships 2 - 3 Weeks
$40.26     /ea
Usually Ships 2 - 3 Weeks
0
$0.00
0
$0.00
0
T24
The T24 is a transformer that has a primary voltage of 120VAC and a secondary voltage of 24VAC.  It operates with a power rating of 40VA, 50/60Hz, and includes 6" wire leads for easy connection.  The unit is UL and CSA listed.

The step-down transformer is suitable for providing low-voltage power to Zone-A-Trol dampers and control panels requiring 24VAC.  Its power rating supports up to five spring return dampers or a control panel with up to four dampers, ensuring efficient system operation.

The T24 is easy to install in any standard 4"x4" junction box with screw terminals allowing for quick wiring of 18-gauge thermostat wire.
Maximum Ambient Temperature Rating 150°F
Secondary Voltage 24 Volts AC
Primary Voltage 120 Volts AC
Connection Primary 6” Wire Leads
Power 40 VA
Frequency 50/60 Hz
Approvals UL and CSA listed

Download Product Information:

Zone First T24 Transformer Technical Datasheet

By Charles

from SOMERS CT

Yes, I would recommend this product to a friend or co-worker

5.0 ZoneFirst T24 Transformer

Works well with ZoneFirst dampers.
