ZoneFirst RDP-06 Plug-In Round Damper 6"

Name: ZoneFirst RDP-06 Plug-In Round Damper 6"
Brand: Zonefirst
SKU: RDP-06
Price: 158.16 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

ZoneFirst RDP-06 Plug-In Round Damper 6"

SKU: RDP-06

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 Week Usually Ships 1 Week	$158.16 /ea	Usually Ships 1 Week

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

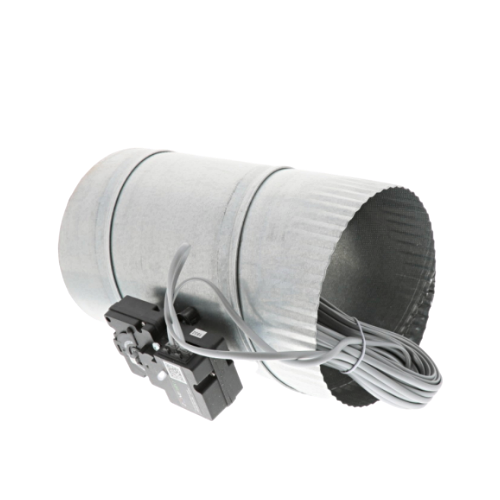

ZoneFirst RDP-06 is an Automatic 6 inch Round Zone Damper with 12VDC motor actuator Model MP12M. The Model MP12M powers the damper closed and open.

The RDP series are galvanized steel, single blade dampers compete with a 12 Volt DC motor actuator. These dampers are shipped complete and ready for installation. The RDP can be installed in any position in any properly sized duct. All RDP dampers are rated for duct systems less than 2.0” W.C.

Dampers are available in 4”, 5”, 6”, 7”, 8”, 9”, 10”, 12”, 14”, 16”. 18” and 20” diameters. Dampers are ordered as RDPdd, using 2 digits for each dimension.

Linkage	Direct Drive
Motor Voltage	12VDC 0.100A
Temperature Rating	Operating 0F to 150F
Humidity	5% to 95%, Non-condensing
Damper Timing	Nominal 5 seconds powered open-closed
Connection	Modular RJ11 2 Ports
Duct Pressure	Maximum 2" W.C.

Download Product Information:

ZoneFirst RDP Series Automatic Round Damper Technical Datasheet
