Armstrong Pumps 571110LF-345 Circuit Balancing Valve CBV200VTCR 2" Threaded

Armstrong Pumps 571110LF-345 Circuit Balancing Valve CBV200VTCR 2" Threaded
Images for general purposes only. Actual may be different than depicted.

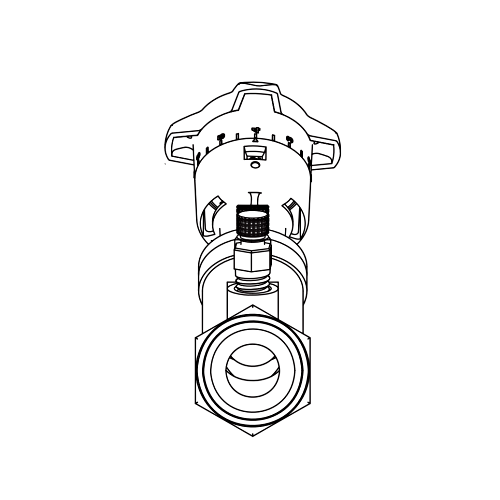

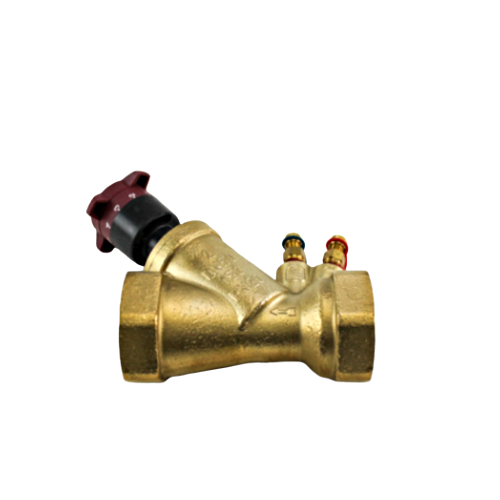

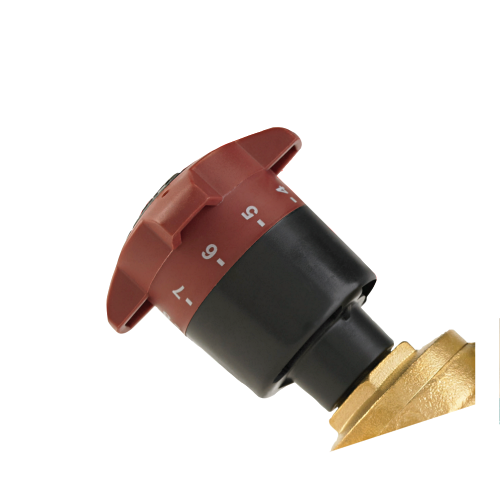

Armstrong Pumps 571110LF-345 Circuit Balancing Valve CBV200VTCR 2" Threaded Armstrong Pumps 571110LF-345 Circuit Balancing Valve 300 PSI Illustration Armstrong Pumps 571110LF-345 Threaded Circuit Balancing Valve Illustration Armstrong Pumps 571110LF-345 Circuit Balancing Valve Handwheel

Armstrong Pumps 571110LF-345 Circuit Balancing Valve CBV200VTCR 2" Threaded

SKU: 571110LF-345
Rating:
Quantity Price Stock
1
Usually ships 2-3 weeks
$459.75     /ea
1
0
$0.00
0
$0.00
0
571110LF-345
The Armstrong Pumps 571110LF-345 is a 2-inch Circuit Balancing Valves with EPDM Elastomers and NPT connection. Valve has a Flow Rate Range of 15.50 to 81.92 gpm. Maximum Working Pressure is at 300 PSI for Circuit Balancing Valves with PT Ports and an Operating Temperatur of -4 to 300 degree F (Model CBV200VTCR)
Maximum Working Pressure 300 psi 20 bar
Operating Temperature Range -4°f to 300°f (-20°c to 150°c)
Connection Type NPT
Pipe Size 2''
Flow Rate Range 15.50 (0.98) - 81.92 (5.16) USgpm (L/s)
Body Material Brass
Stem & Disk Material Brass
Handwheel Material Reinforced Nylon ; ABS
