Copeland Compressor M6KP-0106-TAC-072 Condenser 208-230V 3-Phase

Name: Copeland Compressor M6KP-0106-TAC-072 Condenser 208-230V 3-Phase
Brand: Copeland Compressors
SKU: M6KP-0106-TAC-072
Price: 2652.65 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Copeland Compressor M6KP-0106-TAC-072 Condenser 208-230V 3-Phase

SKU: M6KP-0106-TAC-072

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$2,652.65 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

Add to Cart

Add to Wishlist

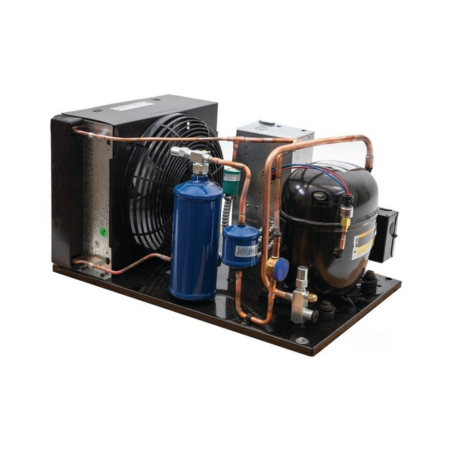

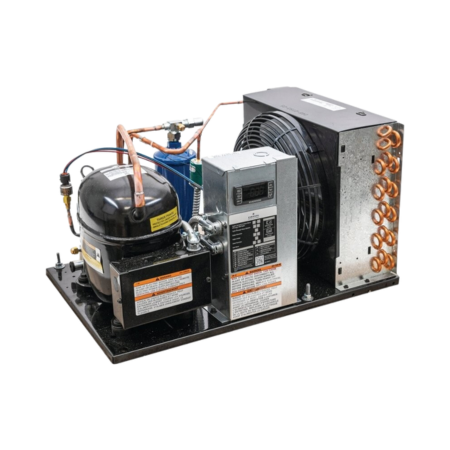

The Copeland M6KP-0106-TAC-072 is a 3-phase air-cooled condenser with RST80C1E-TA5-901 hermetic reciprocating compressor. This unit operates at 1Hp, 208-230V, and 60 Hz power ratings. UL Listed.

The condenser unit has 5/8” OD suction line and 3/8” OD liquid line sizes. This device also includes a conduit, receiver, fan guard, filter drier, end covers, suction valve, moisture indicator, and pressure control/EUC.

The M6KP-0106-TAC-072 directly replaces FJAF-0108-TAC-020 and FJAF-0108-TAC-052. This unit is suitable for high, medium, and low-temperature refrigeration applications. Available with R404A, R407C, R448A, R449A refrigerants.

Condenser Type	Air-Cooled
Compressor Type	Hermetic Reciprocating
Horsepower	1Hp
Number of Phase	3-Phase
Refrigerant Options	R404A, R407C, R448A, and R449A
Voltage	208-230V
Frequency	60 Hz
Approval	UL Listed
Application	High, Medium, and Low Temperature
Compressor Motor Protection	External Inherent Protection One Protector (Line Break)

Download Product Information:

Copeland M-Line Air-Cooled/Water-Cooled Condenser Technical Sheet

Copeland Condensing Unit for Commercial Refrigeration Selection Guide

Copeland M6KP-0106-TAC-072 Condenser Specification Sheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

What is the maximum airflow rate (CFM) through the condensing fan?

Asked on August 23, 2018 by Tyler from Seattle, Washington

1 Answers

Have an answer? Click Here

According to the information we can find, airflow rate is 223CFM. We would recommend however that you consult with a Copeland installer for information related to your application and the requirements for your system.

Replied on August 23, 2018 by Ron from Industrial Stores
