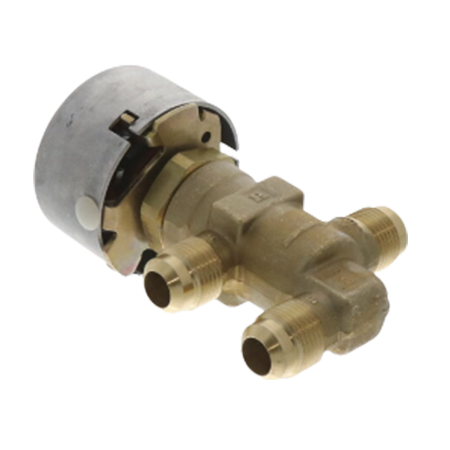

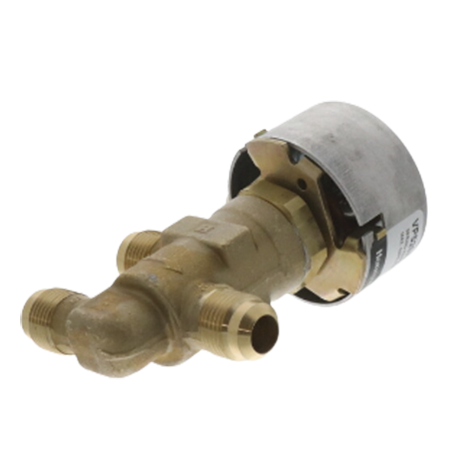

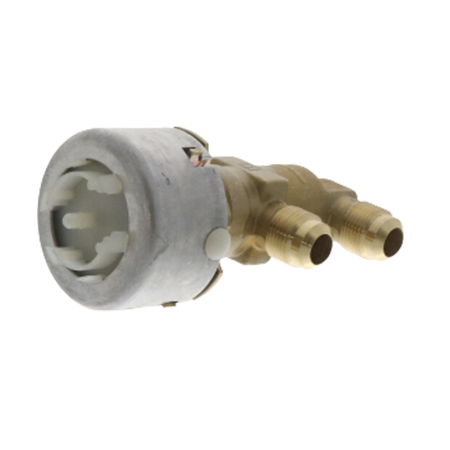

The VP526A1076 is a unitary 3-way water valve that has a 3/8" nominal size for 1/2" O.D. tubing.  It has a 1.6 Cv flow capacity, 3 to 10 psi spring range, 250 psi body pressure rating, and 35 to 250°F controlled medium temperature.

The unitary water valve is suitable for proportionally controlling hot or cold water in unit ventilator and fan coil system applications.  The unit features a forged brass body and stainless steel stem that provides excellent performance and reliability.

The VP526A1076 is quick and easy to install.  The 14002734-002 packing lubricant, 14003297-001 repack and rebuild kit, and 14003648-001 metal vandal-proof top cover assembly accessories are also available.

Check out the available replacement parts:


Part No.	Description
14000639-001	Washer
14001046-004	Cover Fastener
14003102-001	Replacement Top Assembly Cover and Diaphragm
14003313-001	Base Actuator
14003315-001	Packing Gland
315911-00021	Cup
315913-00041	Orange Spring
315917	Diaphragm
316207	Stem
316208	Valve Seat
320047	Retaining Ring
