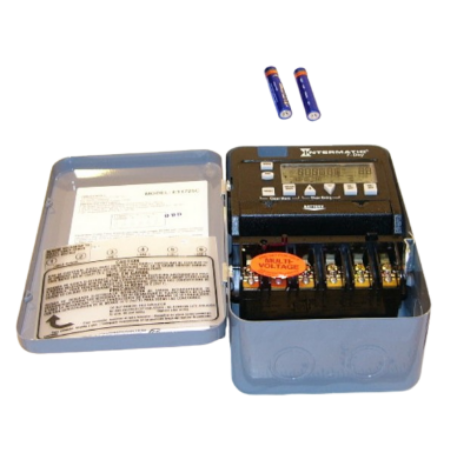

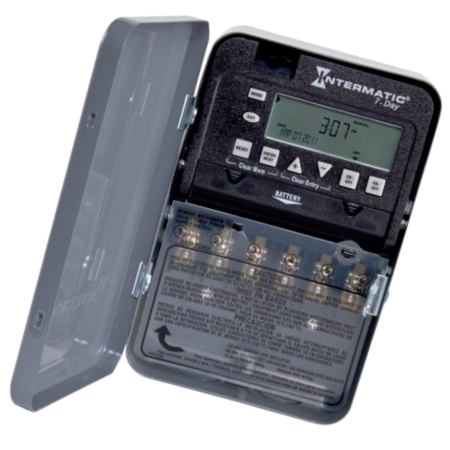

The Intermatic ET1725C is an electronic 7-day time switch that provides precise, to-the-minute control for managing electrical loads, making it an excellent upgrade from traditional mechanical time switches. Designed for versatility, it features independent 7-day programming, allowing for unique schedules each day of the week. This flexibility is ideal for applications such as interior and exterior lighting, HVAC systems, pumps, and various other electrical loads.
Equipped with a selector switch, the ET1725C accommodates input voltages ranging from 120 to 277 VAC, 50/60 Hz, ensuring compatibility with a wide array of systems. Users can program up to 28 ON/OFF events per circuit, providing comprehensive control over connected devices. The time switch also includes automatic daylight saving time adjustments, eliminating the need for manual reprogramming during seasonal time changes.
It also features include temporary or permanent manual override options, offering immediate control when necessary. The ET1725C is housed in a durable, lockable enclosure, safeguarding against unauthorized access and tampering. Its robust design and reliable performance make it a valuable component for efficient energy management in both residential and commercial settings.
Enclosure Rating | NEMA 1 indoor metal enclosure |
---|---|
Maximum ON or OFF time | 6 days, 23 hours, 59 minutes |
Minimum ON or OFF time | 1 minute |
Contact Configuration | DPST |
Maximum Power Consumption | 6.0 watts |
Frequency | 50/60 Hz |
Input Voltage | 120/208/240/277 VAC |
Wire Size | AWG #10 through #18 |
Inductive Amp | 30 Amps |
Operating Temperature | -40°F to 155°F (-40°C to 68°C) |
