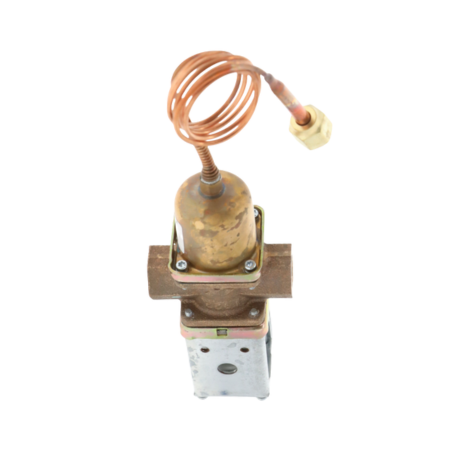

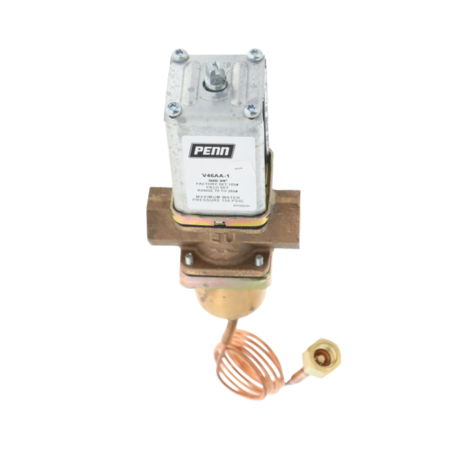

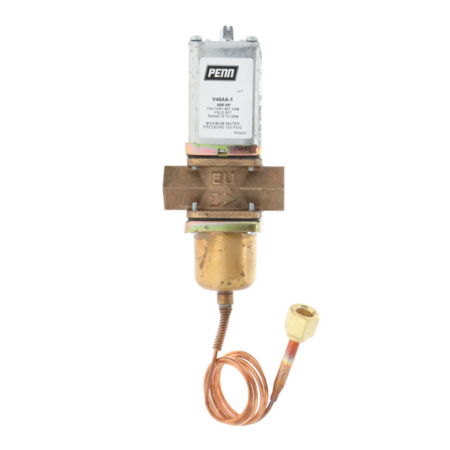

Johnson Controls V46AA-1 Pressure-Actuated Water Regulating Valve 3/8” NPT 70 to 260 PSI

Name: Johnson Controls V46AA-1 Pressure-Actuated Water Regulating Valve 3/8” NPT 70 to 260 PSI
Brand: Johnson Controls
SKU: V46AA-1
Price: 214.88 USD
Availability: InStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Johnson Controls V46AA-1 Pressure-Actuated Water Regulating Valve 3/8” NPT 70 to 260 PSI

SKU: V46AA-1

UNSPSC: 40141600 Tariff HS Code: 8481809045

Brand:

Rating: (1)

Quantity	Price	Stock
21 Usually Ships 2 - 4 Weeks	$214.88 /ea	21

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The Johnson Controls V46AA-1 is a direct-acting, pressure-actuated water regulating valve with a 3/8" NPT connection, designed to handle pressures from 70 to 260 psi. Constructed from cast brass, it includes a 30" capillary and a 1/4" flare nut (Style 45) for secure and durable installation.

Features

Pressure-Balanced Valve Design
Corrosion-Resistant Construction
Quick-Opening Valve Characteristics
High Refrigerant Pressure-Resistant Stainless Steel Bellows
No Close-Fitting or Sliding Parts in Water Passages
Easy to Disassemble with Fully Replaceable Parts

The V46AA-1 regulates the flow of water to a condenser by directly sensing pressure changes in the refrigerant circuit, ensuring efficient system performance and protection. It serves as a direct replacement for the V46AA-38C and is suitable for use in non-corrosive refrigerant systems.

Connection Size	3/8" NPT
Opening Point Range	70 to 260 psi
Material	Cast Brass
Capillary Length	30"
Flare Nut	1/4"
Element Style	45
Control Action	Direct-Acting
Refrigerant Type	Non-Corrosive
Product Type	Regulating Valve
Application	Water-Cooled Condenser
