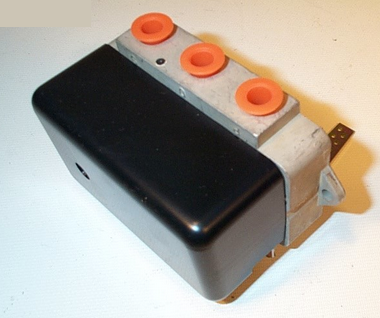

Johnson Controls V-9502-15 Pneumatic Valve Actuator Position without Spring
V-9502 Series Pneumatic Valve Actuator Positioners are precision relay devices designed to operate pneumatic valve actuators in applications requiring stable, accurate control. These positioners provide maximum positioning power to resist external forces that might otherwise overcome the positioning power of the actuator. Adjustable operating span (on all pneumatic valve actuators except the V-3000 Series) and starting point also make the V-9502 ideal for valve sequencing applications.
The V-9502 Series can be mounted directly to V-3000 Series, 3R, 4R, 5R, 8R, or MP8000 Series pneumatic valve actuators. In many instances, the positioner can be ordered factory installed on these actuator and valve assemblies.
Maximum Positioning Power
Compensates for flow surges in the piping system, and holds the valve at the position dictated by the controller
Field-Selectable Operating Span (All Pneumatic Valve Actuators Except V-3000 Series)
Allows for easy valve sequencing from a single control signal
Field-Adjustable Starting Point
Tailors the starting point in order to provide accurate control
Provides application flexibility since models can be mounted directly to V-3000 Series, 3R, 4R, 5R, 8R, and MP8000 Series Pneumatic Valve Actuators
