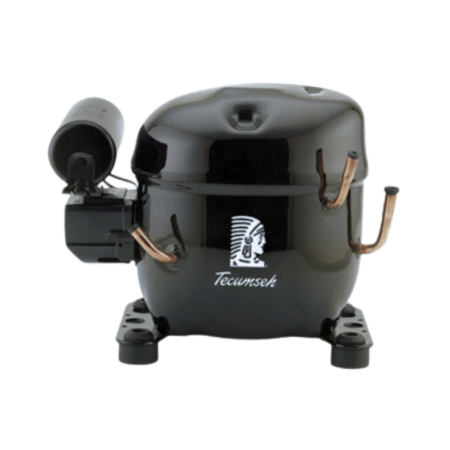

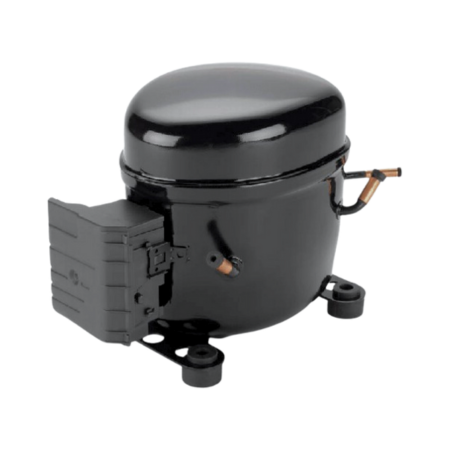

The Tecumseh AE1249E-679-J7 is a single-phase hermetic reciprocating compressor that operates at 1/4Hp, 115V, and 60 Hz. It is CE-Marked and UL Recognized.
This compressor uses R12 refrigerant and offers a cooling capacity of 1098 BTU. Features a 5/16" suction line and a 1/4" discharge line for efficient refrigerant flow.
The AE1249E-679-J7 directly replaces Tecumseh AE2410A-AA1A and Copeland ARE29C4-IAA-959 compressors. Suitable for use in low-back pressure (LBP) applications.
| Number of Phase | Single-Phase |
|---|---|
| Refrigerant | R12 |
| Horsepower | 1/4Hp |
| Frequency | 60 Hz |
| Voltage | 115V |
| Discharge Line Size | 1/4" (6.35mm) |
| Suction Line Size | 5/16” (7.93mm) |
| Application | Low-Back Pressure (LBP) |
| Motor Torque | High Start Torque (HST) |
| Rating Point | -23°C (-10°F) |
